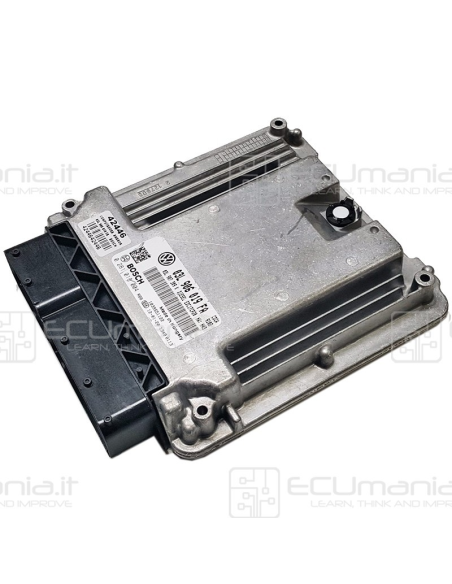

Bosch EDC17CP04, EDC17CP14, EDC17CP20, EDC17CP24 Tricore TC1796-256F, IROM / XROM
Bosch EDC17CP04, EDC17CP14, EDC17CP20,...

Bosch EDC17CP04, EDC17CP14, EDC17CP20, EDC17CP24 Tricore TC1796-256F, IROM / XROM

SER-VAG-ECU-002
Disponibile
190,00 €

Disabilitazione IMMOBILIZER (IMMO OFF), SWIRL OFF, EGR OFF, DPF OFF, TVA OFF per MCU Tricore TC1796-256F

SCONTO!

Sconti disponibili per AUTORIPARATORI e PROFESSIONISTI del settore

Pagamenti sicuri al 100%

Descrizione

Disabilitazione IMMOBILIZER (IMMO OFF), SWIRL OFF, EGR OFF, DPF OFF, TVA OFF per MCU Tricore TC1796-256F



Difetto tipico riscontrato:

IMMO - Mancato avviamento della vettura. Il motore si avvia e si spegne dopo pochi secondi

ALTRO - Spia MIL Accesa, guasti relativi al circuito.



Device:

MCU Tricore TC1796-256F, XROM Flash SC29CD016



Programmatori:

NewTrasdata (o compatibili)



Istruzioni:

- Leggere l'MCU Tricore TC1796-256F (e XROM, se presente).

- Inviare il file tramite il la pagina CONTATTACI, avendo cura di compilare tutti i dati e indicando il riferimento ordine (il codice viene generato dopo l'acquisto del servizio).

- Attendere la risposta del supporto tecnico, in modo che venga accertata la conformità del file.

- Scrivere il file inviato dall'assistenza nell'MCU (e XROM, se presente).



ECU Testate:

VAG Part Number EDC17CP04:

4L0910104H, 4L1910401E, 8K0907401, 8K0907401F

VAG Part Number EDC17CP14:

03L906019AE, 03L906019AF, 03L906019AG, 03L906019AH, 03L906019AK, 03L906019AR, 03L906019BC, 03L906019BD, 03L906019CM, 03L906019CR, 03L906019DA, 03L906019DB, 03L906019EE, 03L906019HH, 03L906019KS, 03L906019KT, 03L906019L, 03L906019M, 03L906019NJ, 03L906022AA, 03L906022AG, 03L906022AH, 03L906022AN, 03L906022AP, 03L906022B, 03L906022BD, 03L906022BE, 03L906022BG, 03L906022BJ, 03L906022BK, 03L906022BL, 03L906022BM, 03L906022BP, 03L906022BQ, 03L906022BR, 03L906022BS, 03L906022C, 03L906022CL, 03L906022CM, 03L906022CN, 03L906022D, 03L906022DB, 03L906022DC, 03L906022DD, 03L906022DL, 03L906022DT, 03L906022EA, 03L906022EL, 03L906022EM, 03L906022EP, 03L906022EQ, 03L906022F, 03L906022FD, 03L906022FG, 03L906022FH, 03L906022FL, 03L906022FN, 03L906022FP, 03L906022G, 03L906022GA, 03L906022GB, 03L906022GC, 03L906022GD, 03L906022GP, 03L906022GQ, 03L906022GT, 03L906022HA, 03L906022HB, 03L906022HC, 03L906022HE, 03L906022HF, 03L906022HG, 03L906022HH, 03L906022HM, 03L906022HN, 03L906022HQ, 03L906022HR, 03L906022HS, 03L906022JK, 03L906022JL, 03L906022JM, 03L906022JN, 03L906022JP, 03L906022JQ, 03L906022JR, 03L906022JS, 03L906022KA, 03L906022KB, 03L906022KD, 03L906022KE, 03L906022KF, 03L906022KG, 03L906022KP, 03L906022KP, 03L906022KT, 03L906022LA, 03L906022LB, 03L906022LC, 03L906022LD, 03L906022LE, 03L906022LF, 03L906022LH, 03L906022LJ, 03L906022LK, 03L906022LM, 03L906022LS, 03L906022M, 03L906022MA, 03L906022MC, 03L906022MJ, 03L906022MK, 03L906022ML, 03L906022MM, 03L906022MP, 03L906022NJ, 03L906022PB, 03L906022PD, 03L906022PL, 03L906022PM, 03L906022QB, 03L906022QC, 03L906022QD, 03L906022QE, 03L906022QF, 03L906022QG, 03L906022QH, 03L906022QJ, 03L906022QT, 03L906022R, 03L906022RA, 03L906022RB, 03L906022RD, 03L906022RE, 03L906022RN, 03L906022RP, 03L906022RQ, 03L906022RS, 03L906022RT, 03L906022S, 03L906022SA, 03L906022SB, 03L906022SQ, 03L906022T, 03L906022TK, 03L906022TQ, 03L906022TQ, 03L906022TQ, 03L997009E, 03L997012N, 03L997013H, 03L997013K, 03L997013T, 03L997016A, 03L997016H, 03L997016J, 03L997016K, 03L997016L, 03L997016M, 03L997016N, 03L997016R, 03L997017N, 03L997017S, 03L997017T, 03L997019D, 03L997021, 03L997021A, 03L997021D, 03L997021H, 03L997021J, 03L997025F, 03L997025G, 03L997025H, 03L997025P, 03L997026, 03L997026A, 03L997026D, 03L997026F, 03L997026R, 03L997027H, 03L997030B, 03L997030C, 03L997030E, 03L997030J, 03L997030N, 03L997030P, 03L997030R, 03L997367, 03L997367C

VAG Part Number EDC17CP20:

03L906019AB, 03L906019AC, 03L906019AD, 03L906019AL, 03L906019AQ, 03L906019AT, 03L906019BB, 03L906019C, 03L906019D, 03L906019DG, 03L906019DH, 03L906019DJ, 03L906019DK, 03L906019DL, 03L906019DN, 03L906019DT, 03L906019E, 03L906019EK, 03L906019EL, 03L906019EM, 03L906019EN, 03L906019ES, 03L906019FA, 03L906019FB, 03L906019FC, 03L906019FD, 03L906019FE, 03L906019FF, 03L906019FG, 03L906019FH, 03L906019FK, 03L906019FL, 03L906019FM, 03L906019FN, 03L906019G, 03L906019GC, 03L906019GD, 03L906019GF, 03L906019GH, 03L906019GJ, 03L906019GK, 03L906019GL, 03L906019GM, 03L906019GN, 03L906019GP, 03L906019GQ, 03L906019GR, 03L906019GS, 03L906019HJ, 03L906019HK, 03L906019HL, 03L906019JM, 03L906019JN, 03L906019JP, 03L906019JQ, 03L906019JR, 03L906019KH, 03L906022CB, 03L906022CH, 03L906022CJ, 03L906022CK, 03L906022CS, 03L906022EN, 03L906022GF, 03L906022GH, 03L906022GK, 03L906022JB, 03L906022JC, 03L906022JD, 03L906022JE, 03L906022JF, 03L906022JG, 03L906022JH, 03L906022JJ, 03L906022NN, 03L906022RJ, 03L906022RL, 03L906022SG, 03L906022SL, 03L906022SM, 03L906022SP, 03L906022TK, 03L906022TL, 03L906022TM, 03L906022TN, 03L997017C, 03L997017E, 03L997017F, 03L997017G, 03L997017J, 03L997017L, 076906022C, 076906022E, 076906022G, 076906022M, 076906022N, 076906022P, 076906022Q, 076997022, 076997022A

VAG Part Number EDC17CP24:

04L910051E, 04L910051F, 04L910051G, 7L0907401T, 8K0907401E



Vetture:

Audi

A3, A4, A5, A6, Q5, Q7



Porsche

Cayenne



Seat

Altea



Skoda

Octavia, Superb, Yeti



Volkswagen

Amarok, Crafter, Golf, Jetta, Passat, Scirocco, Tiguan, Touareg, Transporter
