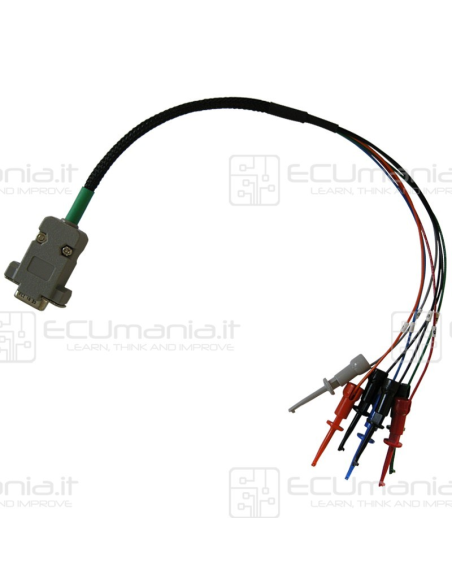

UPA-S 9S12 SECURED Cable with E-Z-Hook Micro Clips

The UPA-S 9S12 SECURED Cable is designed specifically for programming secured Motorola/Freescale 9S12 microcontrollers using the UPA-S Programmer.

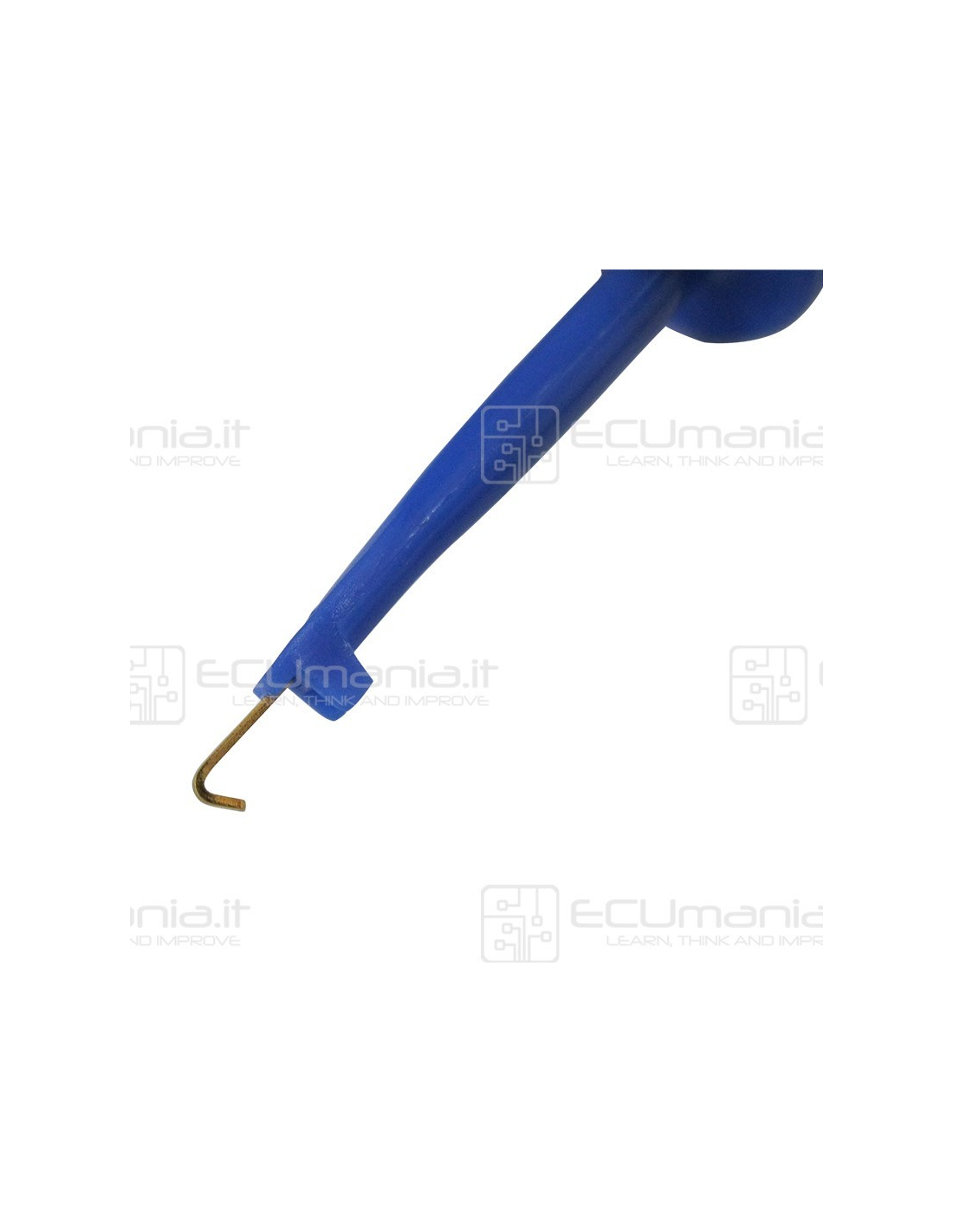

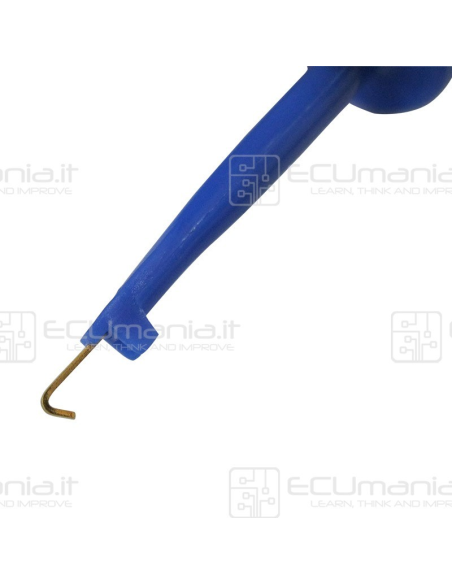

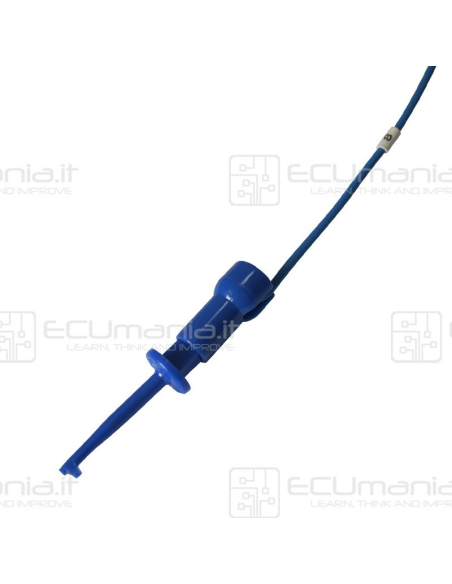

It is equipped with E-Z-Hook XM-S micro clips, allowing fast and reliable connection to PCB test points during programming operations.

Easy Connection to PCB Test Points

The micro clips allow direct connection to small pads and test points on the PCB, eliminating the need for soldering and simplifying bench operations.

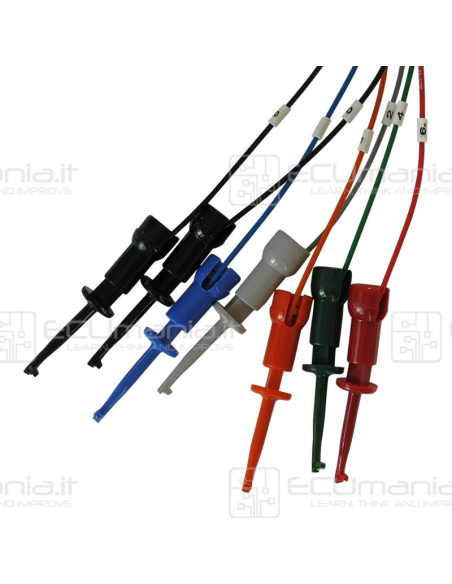

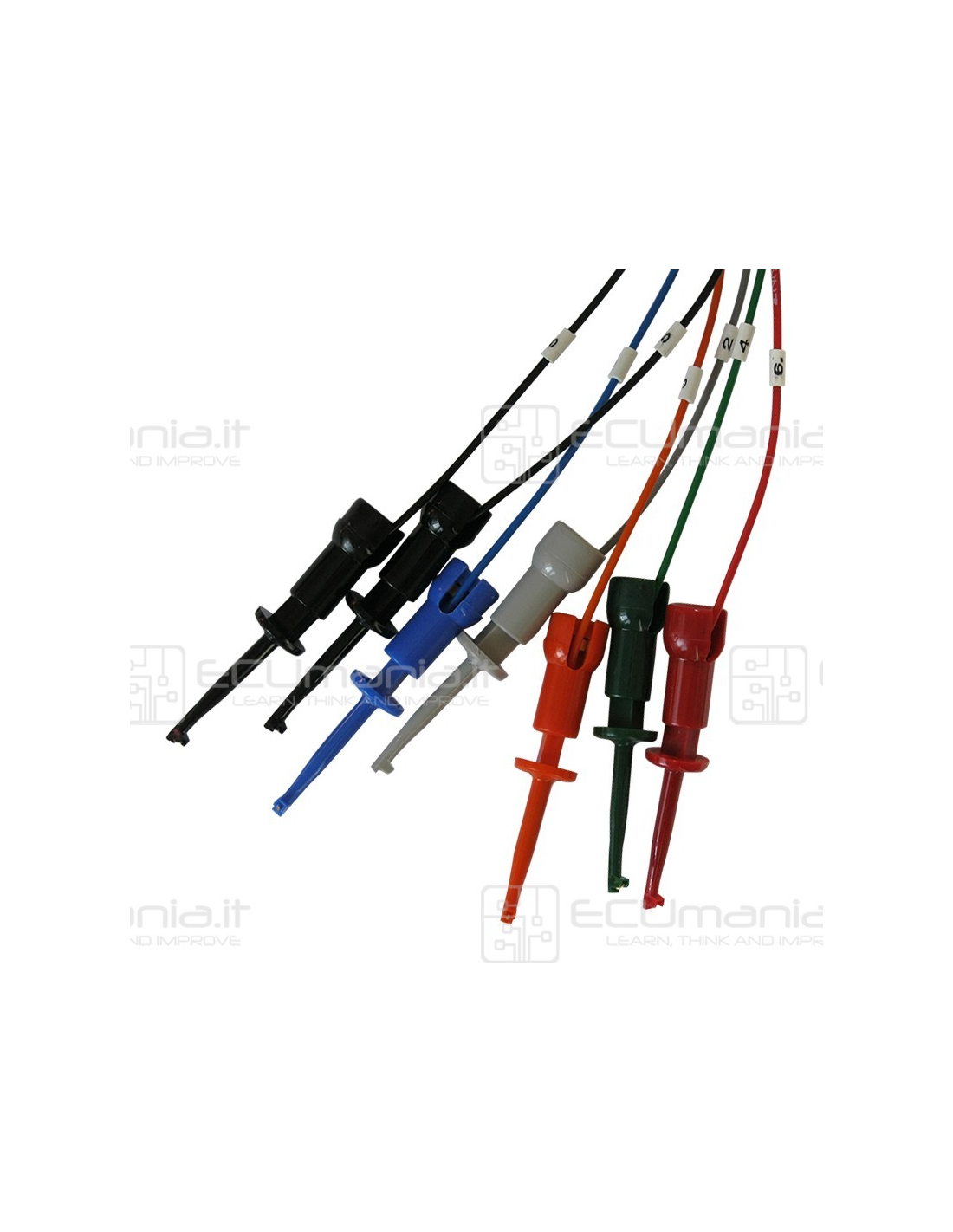

Each wire is clearly numbered, making connections faster and reducing wiring errors during programming procedures.

Important Notice

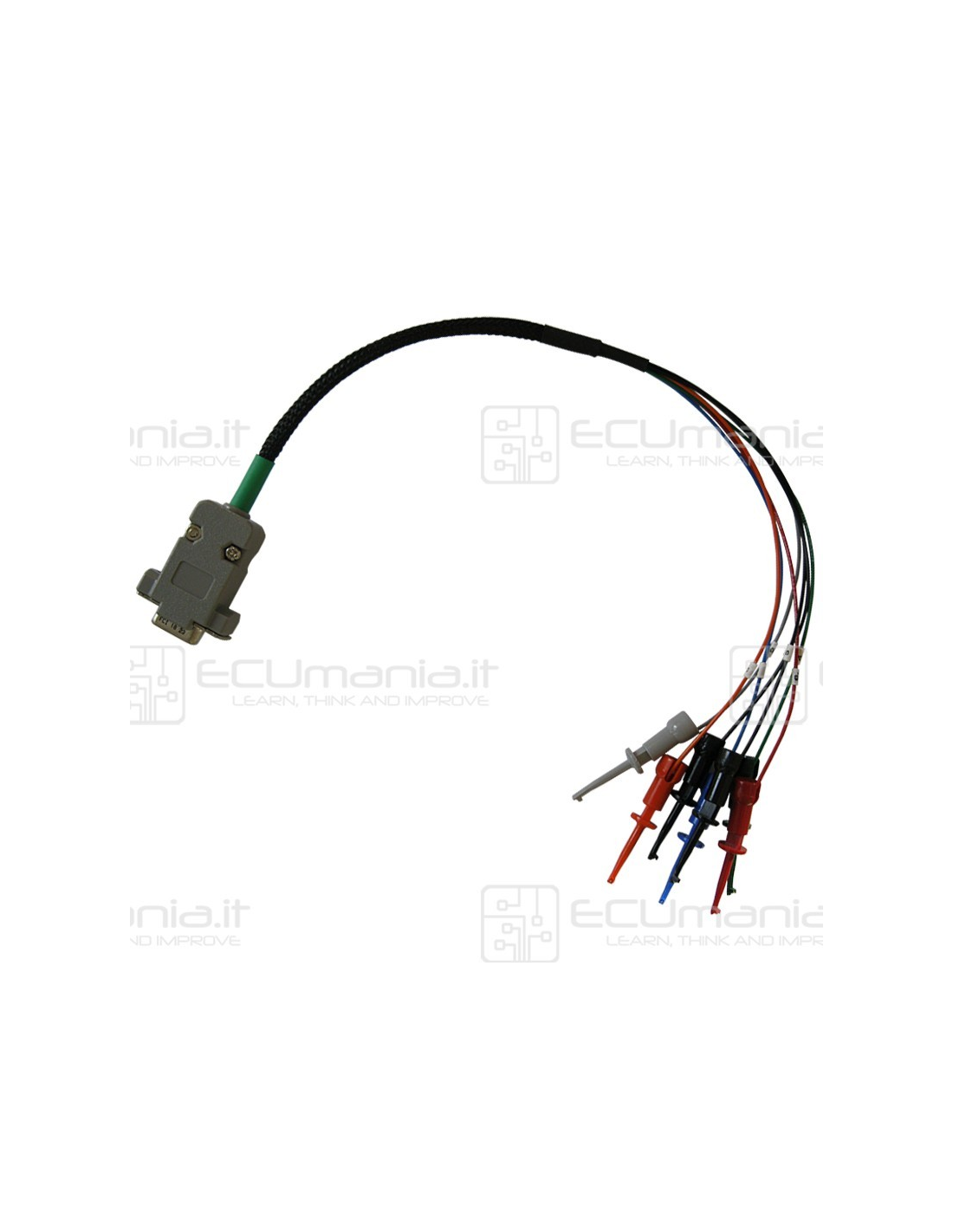

⚠ The 9S12 SECURED cable is identified by a GREEN stripe.

Do not use the standard UPA-S cable when working with secured 9S12 microcontrollers.

Supported Devices

MC9S12A128
MC9S12B128
MC9S12C16
MC9S12C32
MC9S12C64
MC9S12C96
MC9S12C128
MC9S12D64
MC9S12DG128
MC9S12DG256
MC9S12DP512
MC9S12XA256
MC9S12XD64
MC9S12XD128
MC9S12XDT256
MC9S12XDT384
MC9S12XDT512
MC9S12XEG128
MC9S12XEP100
MC9S12XEP768
MC9S12XEQ384
MC9S12XEQ512
MC9S12XET256
MC9S12XHY128
MC9S12XHY256
MC9S12XS64
MC9S12XS128
MC9S12XS256
